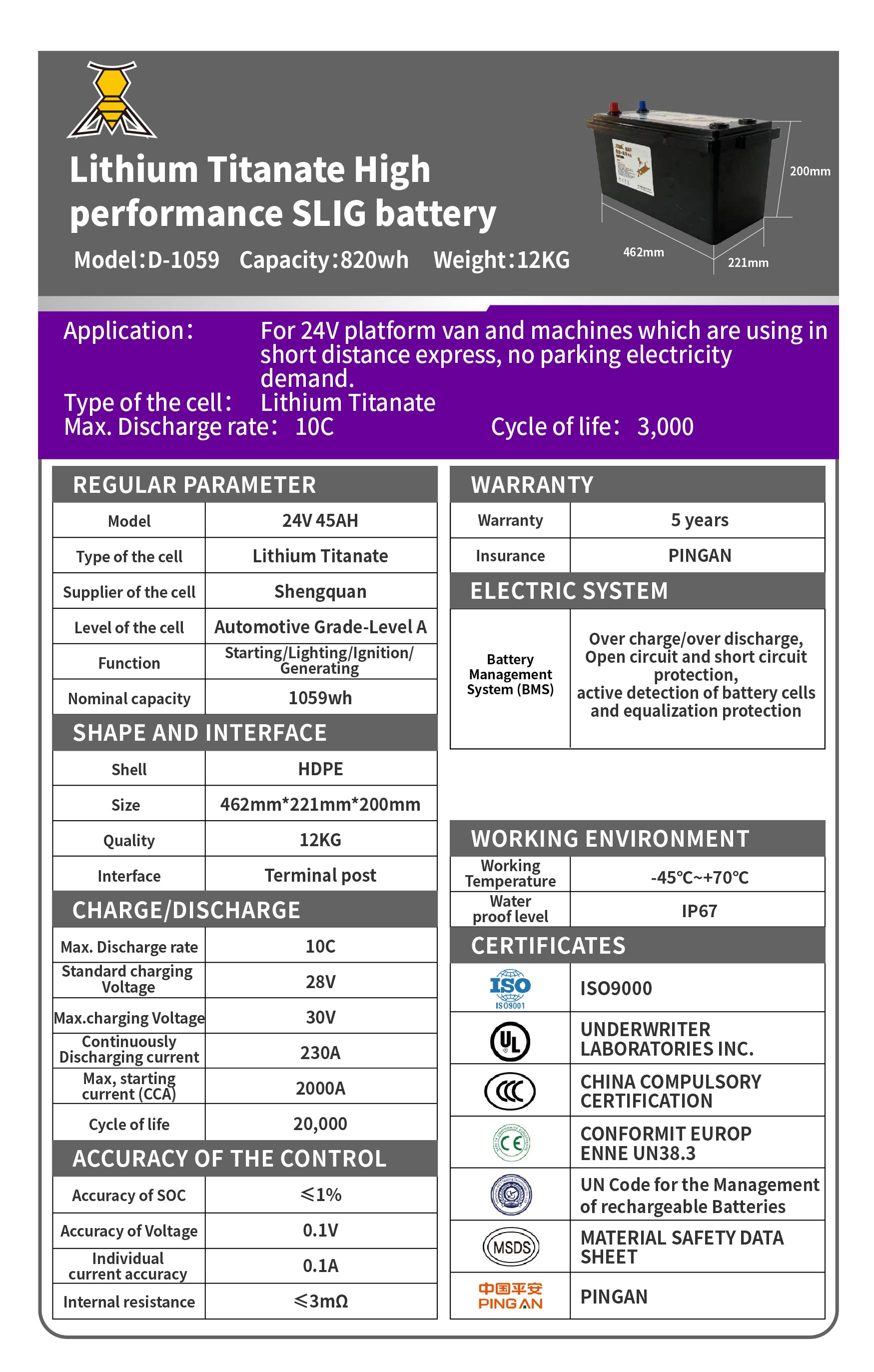

High-Rate Commercial Vehicle Starter Battery
Model: D-1059; Capacity: 820wh   Weight: 12KG
Applicable Scenarios
Short-distance transportation, express logistics, no idling needs, construction machinery, etc.
Core Specifications
Cell Type: Lithium Titanate   Discharge Rate: 10C   Cycle Life: ≥20,000 cycles
General Technical Parameters
| Parameter | Details |
|---|---|
| Model | 24V 45AH |
| Cell Type | Lithium Titanate |
| Cell Manufacturer | Shengquan Group |
| Cell Grade | Grade A |
| Function | Starter |
| Rated Energy | 1059wh |
Dimensions & Interfaces
| Parameter | Details |
|---|---|
| Shell Material | High-Density Resin |
| Dimensions | 462mm*221mm*200mm |
| Weight | 12KG |
| Charge/Discharge Interface | Terminal Post |
Charging & Discharging
| Parameter | Details |
|---|---|
| Discharge Rate | 10C |
| Standard Charging Current | 28V |
| Max Charging Voltage | 30V |
| Continuous Discharge Current | 230A |
| Max Starter Current | 2000A |
| Cycle Life | ≥20,000 cycles |
Control Precision
| Parameter | Details |
|---|---|
| SOC Precision | ≤1% |
| Cell Voltage Precision | 0.1V |
| Cell Current Precision | 0.1A |
| Internal Resistance | ≤6mΩ |
Warranty
| Item | Details |
|---|---|
| Warranty Period | 5 Years |
| Insurance | Ping An Insurance |
Electronic System
| System | Functions |
|---|---|
| Battery Management System (BMS) | Overcharge/overdischarge protection, short circuit protection, open circuit protection, reverse connection protection, active cell detection & balancing |
Operating Environment
| Parameter | Details |
|---|---|
| Operating Temperature | -45℃ to +60℃ |
| Waterproof Rating | IP67 |
Quality Certifications
ISO: Quality Management System Certification
UL: UL Safety Laboratory Certification (UNDERWRITER LABORATORIES INC.)
CCC: China Compulsory Certification (CHINA COMPULSORY CERTIFICATION)
CE: EU CE Certification (CONFORMIT EUROPE ENNE) UN38.3
Test Report: Complies with UN rechargeable battery operation standards
MSDS: Material Safety Data Sheet (MATERIAL SAFETY DATA SHEET)
Insurance: Ping An Insurance
